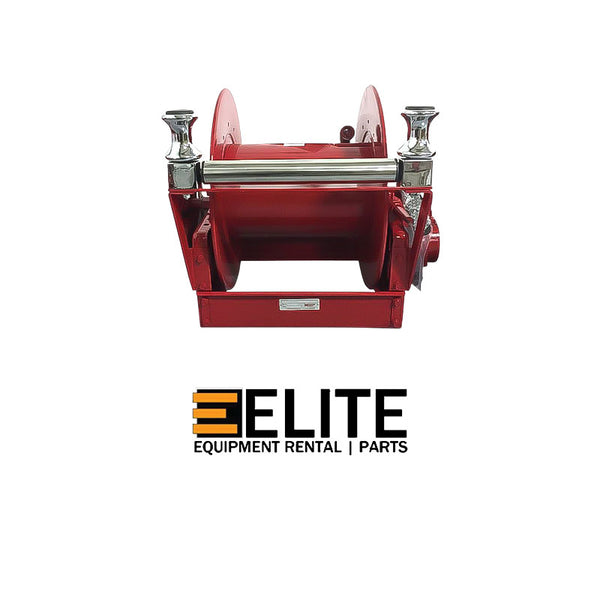

Standard booster hose reel is steel, painted graphite. Aluminum or stainless steel construction is also available.
Super Booster® (aluminum construction) reel weighs up to 30% less than standard booster reel. Stainless steel construction is also available.
Gear-driven crank rewind is standard. Choose chain and sprocket drive powered by electric, hydraulic, or compressed air motor.
Pinion brake standard.
Standard inlet: 1" 90° ball bearing swivel joint with 1" female NPT threads
Standard outlet: 1" male NST threads (1.375" x 8 threads per inch.)
Consult factory for other sizes and/or threads.
Standard inlet, outlet riser, and hub assembly are steel (also available in stainless steel).
Rollers and roller mounting brackets are accessory items. Specify roller position.
Pressures to 1000 psi (69 bar).
Temperatures from -25°F to +250°F (-32°C to+121°C).
